Team Associated - TC6 Factory Team 1/10th Scale Electric Touring

( Associated )

Prezzo: Prezzo Listino €665,50
€415,45 (incluso 21 % I.V.A.)
Risparmi: €250,05

Chiedi un'informazione riguardo questo prodotto

AS30106

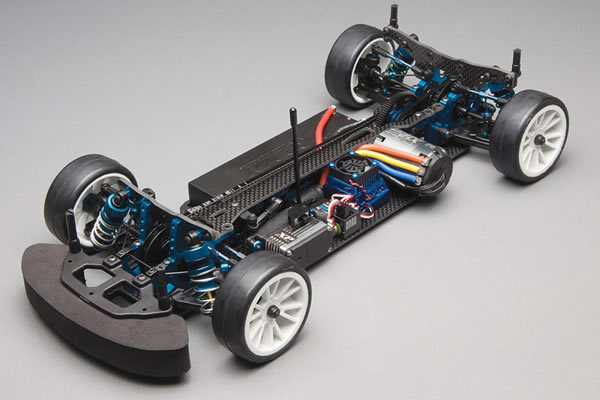

Team Associated TC6 Factory Team 1/10th Scale Electric Touring Car Kit

The RC10TC6 Factory Team kit is the newest edition to the family and legacy of competitive, high performance 4WD touring cars by Team Associated. Designed to take full advantage of all the latest technological advances made in 1:10 scale electronics, the TC6 has been optimized to use all of the benefits offered by brushless motor systems and LiPo batteries. The engineers behind the doors of Area 51 have been hard at work developing the TC6 to blend the best qualities of high performance and adjustability without sacrificing durability or ease of maintenance.

The TC6 takes the same suspension components from the TC5R before it and adds many new features, making it even better. For improved weight distribution, the TC6 motor mount has been moved 13mm closer to the chassis center line and the spur gear has been lowered 5mm compared to the TC5. These changes result in a more centralized mass and lower center of gravity for the TC6 chassis. The servo mounting holes are slotted to not only accommodate different servos but also to optimize the position of the servo mass.

The TC6 includes the Factory Team VCS3 shock package that features hard-anodized threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction.

An updated steering system with additional Ackermann options and an improved steering input rate gives the TC6 more consistent handling. Blue titanium turnbuckles come with new ballcup eyelets for easier access to the ball studs.
These are only a few of the many refinements that can be found in the RC10TC6 Factory Team kit - making it yet another Champion by Design!

TC6 Factory Team Features:

Chassis optimized for LiPo batteries and brushless motors
Motor moved 13mm in toward the chassis center, and spur gear lowered 5mm from TC5
Servo mounting slots to ensure proper fit of multiple servos
Symmetrical bulkheads utilized throughout the TC6 chassis
Updated steering system featuring more Ackermann options for improved steering input rate, resulting in more consistent handling
VCS3 shock with hard-anodized threaded shock bodies that feature bottom-loaded seals and additional stroke for more up-travel at the wheels
Long upper camber link option for increased corner speed
Easy-access suspension arm mounting screws thread into bulkheads
Titanium turnbuckles with new ballcup eyelets for easy access to ball stud
Hard-anodized diff outdrives for low wear and long life
20 precision ball bearings
Cross-compatibility with TC5 suspension components
Hardened steel CVAs with cross-pin retaining clips
Front and rear anti-roll bars included
Belt drive with adjustable differential heights and belt tension

Spec Check:

Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 381mm (15in)
Width: 190mm (7.48in)
Wheelbase: 255mm (10.04in)
Weight: 1330g (2.93 lbs)
Internal Gear Ratio: 2.0:1
Drive: 4WD

*This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Team Associated TC6 Factory Team 1/10th Scale Electric Touring Car Kit


TC6 Blank Setup Sheet

TC6 Factory Setup

Right Click and select "Save As"

Part Details

Part #	Description
AS30106	TC6 Factory Team 1/10th Scale Electric Touring Car Kit

Team Associated TC6 Factory Team 1/10th Scale Electric Touring Car Kit Image Gallery
