Team Associated SC10 4x4 RTR Brushless 4WD RockStar/Makita
Cod. AS30107

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring
Visualizza Ingrandimento

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring

( Associated )
Prezzo: Prezzo Listino €530,00
€399,95 (incluso 21 % I.V.A.)
Risparmi: €130,05

Chiedi un'informazione riguardo questo prodotto
AS30107

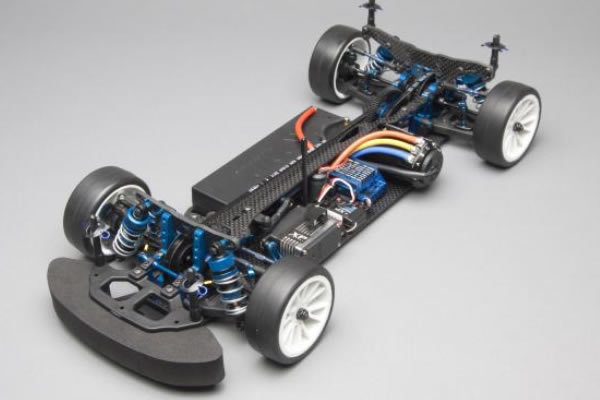

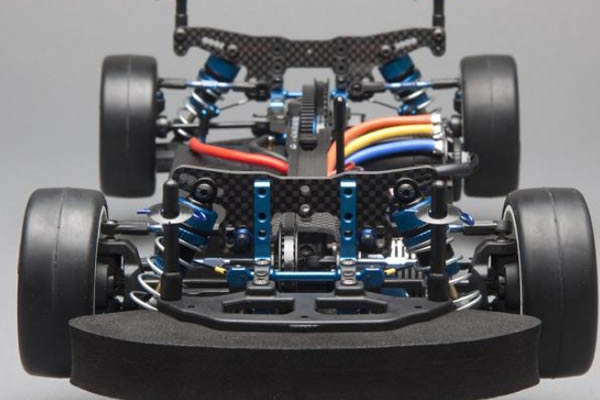

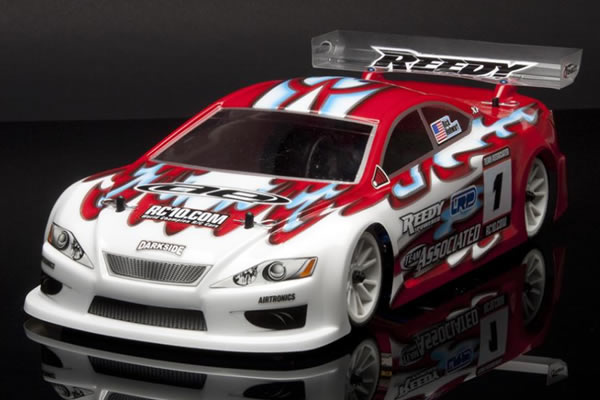

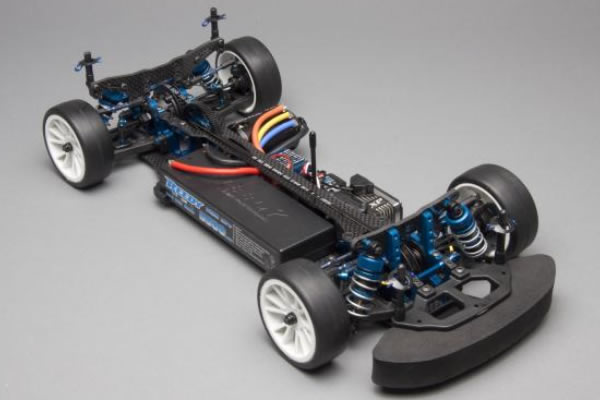

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car
The RC10TC6.1 Factory Team kit is the next evolutionary step in touring car design from Team Associated. Building on the successfully proven TC6, the designers behind the doors of Area 51 added even more features, making the TC6.1 easier to tune and drive.

The TC6.1 narrow chassis has been designed around current brushless motor systems and LiPo batteries, optimizing weight distribution for superior handling. To further enhance handling performance, the TC6.1 has received updated suspension arms for increased stiffness and strength. These new suspension arms feature finer shock adjustments to help get the TC6.1 totally dialed in.

New caster blocks and rear hubs found in the TC6.1 feature integrated inserts for caster and rear-toe angle adjustments. Now you can change these angles by merely changing the inserts and not the whole assemblies, making the TC6.1 even quicker and easier to tune to the track conditions.

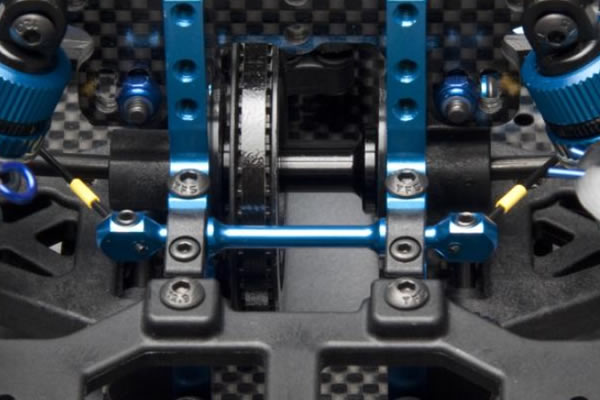

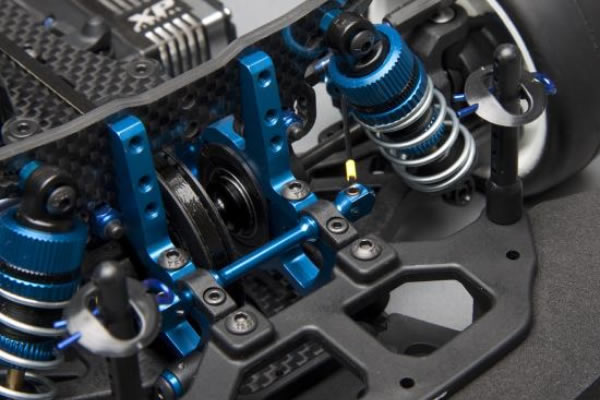

The TC6.1 features the new H.D.R.C. (High Definition Roll Control) system, taking anti-roll bar technology to the next level. The H.D.R.C. is built on a solid aluminum center member that rolls on a bearing surface. Roll stiffness is controlled and adjusted by the two wires that mount into the sides of the aluminum center member and link to the suspension arms. By removing the torsional flex with the aluminum center member, a higher definition of roll control is achieved with the different wire options.

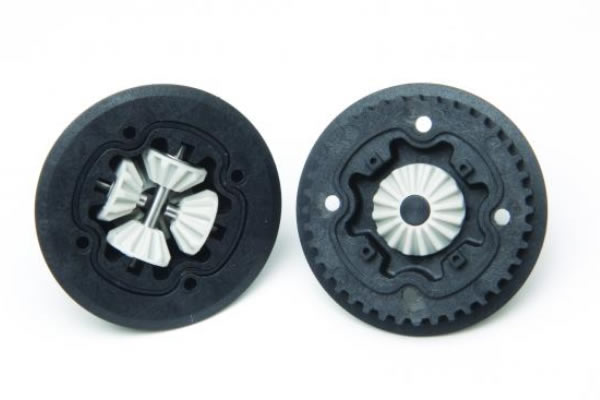

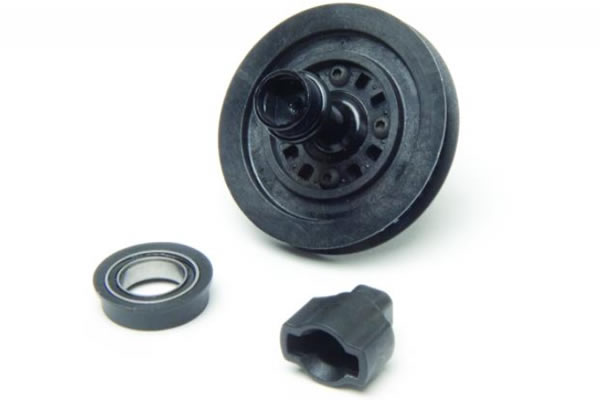

New for the TC6.1 is the lightweight rear gear differential that provides maximum performance and low maintenance. The front spool now features replaceable composite outdrives that still retain the low friction, free movement performance of the CVA blades, while being much more economical to replace after a hard impact. Symmetrical blue aluminum bulkheads and cross-compatibility with TC6 chassis components also help make the TC6.1 more economical to run.

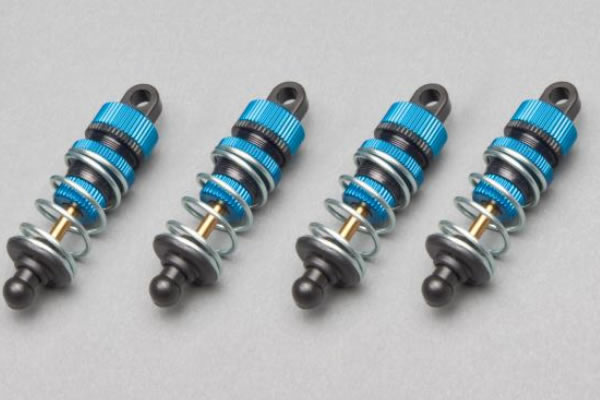

The TC6.1 comes equipped with the Factory Team VCS3 shock package that features hard-anodized threaded shock bodies with bottom-loaded seals. The VCS3 shocks are super smooth and have an increased stroke for more up-travel at the wheels, all adding up to more consistent overall traction.

Multi-position steering system with additional Ackermann options and an improved steering input rate gives the TC6.1 more consistent handling. Blue titanium turnbuckles come with new ballcup eyelets for easier access to the ball studs.

These are only a few of the many refinements that you will find in the RC10TC6.1 Factory Team kit - making it yet another Champion by Design!

TC6.1 Factory Team Features:
  • Updated suspension arms for increased stiffness and strength, as well as finer shock adjustments
  • Hubs and caster blocks use integrated inserts for adjustable caster and toe angles
  • H.D.R.C. (High Definition Roll Control) system
  • Lightweight rear gear diff for maximum performance and minimal maintenance
  • Front spool with replaceable composite outdrives
  • Offset arm mounts help increase durability and minimize shims between mount and bulkhead
  • Ultra-narrow chassis layout optimized for Lithium Batteries and Brushless Motors
  • Symmetrical bulkhead layout minimizes spare part cost
  • Multi-position steering system to fine-tune Ackermann/steering rates
  • VCS3 Shock with hard-anodized threaded shock bodies
  • Titanium turnbuckles with new ballcup eyelets for easy access to ball stud
  • 16 precision ball bearings
  • Cross-compatibility with TC6 chassis components

Spec Check:
  • Length: 381mm (15in)
  • Width: 190mm (7.48in)
  • Wheelbase: 255mm (10.04in)
  • Weight: 1375g (3.03 lbs)
  • Internal Gear Ratio: 2.0:1
  • Drive: 4WD

Please Note: This vehicle comes as a kit and must be fully assembled by the user. Requires motor, electronic speed control, 7.4V LiPo, 6.0V LiFe battery and charger, 2-channel transmitter, receiver, steering servo, 190mm touring car body and 1:10 scale rubber or foam touring car tyres.
Team Associated
Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car
Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car
Information
TC6.1 Blank Setup Sheet 536 Kb
TC6.1 Manual 19.29 Mb
Right Click and select "Save As"
Extras
190mm Bodyshells
TC6 Option Parts

Part Details

Part # Description
AS30107 Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car

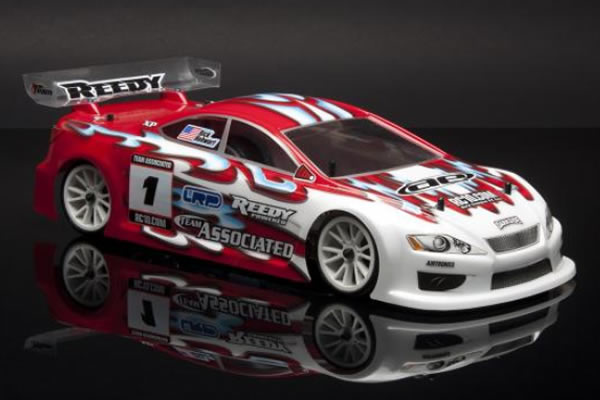

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Image Gallery

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car

Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Thumbnail Gallery
Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car Team Associated TC6.1 Factory Team 1/10th Scale Electric Touring Car
