Cod. CML-AX90017

Visualizza Ingrandimento

Axial XR10 1/10th Scale Electric 4WD Rock Crawler Competition Ki

( Axial )

Prezzo: Prezzo Listino €499,13
€404,08 (incluso 21 % I.V.A.)
Risparmi: €95,05

Chiedi un'informazione riguardo questo prodotto

CML-AX90017

Axial XR10 1/10th Scale Electric 4WD Rock Crawler Competition Kit

Exciting news in the crawling world as Axial release details of the long awaited XR10 1/10th Scale Rock Crawler. We're pleased to report it looks absolutely amazing! Designed from the ground up, this purpose built competition crawler is a combination of Axial's years of crawling experience and the desire to create something new and special.

Axial XR10 Features:

Complete 'no-compromise' competition ready kit
All new front and rear specific strong durable composite plastic, lightweight axles
Low profile axle housing design for maximum ground clearance
Front steering axle with the ability to rotate (clock) the motor up/down Rear axle is 16mm narrower than the front axle to squeeze through tight gate layouts
All New Behind the Axle (BTA) Steering
Enclosed steering slide with turnbuckles to adjust toe in and toe out.
8° kingpin angle helps keep scrub radius to a minimum, which equals less stress on your steering servo
Durable composite plastic - strong double shear knuckle arms with replaceable aluminum draw link mount
Splined adjustable c-hubs provide caster adjustments in 15° increments
Oversized Universals
Oversized 12.5mm universals with 4mm and 2.5mm cross pins
Made of hardened steel
No backlash like dogbone setups 45° of steering out of the box
37.9:1 gear ratio using the included 14T pinion.
Gearbox allows for use of 12-19T pinions for gear ratios ranging from 44.2:1 through 27.9:1
Dual motors allow you to easily adjust your front and rear gear ratios independently
Compact and lightweight gearboxes keep the motor positioned closer to the axle housing and above the axle centerline for extra clearance
Aluminum chassis plates with durable composite plastic skid plate
Chassis provides multiple upper link adjustment holes for suspension tuning and adjusting anti-squat
Adjustable upper shock mounts included for fine tuning ride height and can be catered to your own personal driving style
Adjustable body mounts provide finite adjustments for different angles and heights
Removable electronics tray for easy maintenance and installation
Waterproof receiver box with wire routing guides for cleaner electronic routing/configuration.
Multiple ESC mounting plates and configurations
Low profile battery mount places the weight of the battery at a lower position in the vehicle to help lower the center of gravity
Oversized rod ends with large 7mm aluminum links and durable composite plastic sleeves (replaceable)
Light durable composite plastic upper links also aid in lowering the center of gravity
Full ball bearings (oversized differential bearings)
Differentials: locked (spool)
Wheels: New Axial 2.2 Competition Beadlocks with CNC orange anodized rings.
Suspension: 4-link, double triangulated
72-103mm shocks: includes aluminum bodies and 10mm machined Delrin pistons.
Axial 'Hardline' competition inspired body – design, layout, and size all catered for optimum performance.

Spec Check:

Wheelbase: 317.5mm Max
Front Wheel to Wheel (outside) Width: 260mm
Rear Wheel to Wheel (outside) Width: 241mm
Height: 133mm-172mm
Ground Clearance: 44.5mm-86.5mm)

Please Note: This model requires a 2, 3, 4 Channel Radio, 1 Standard Size servo, ESC, Dual 540 sized Motors, Battery & 2.2" tyres with foam inserts

Axial XR10 1/10th Scale Electric 4WD Rock Crawler Competition Kit


XR10-Exploded-Sheet1

XR10-Exploded-Sheet2

Right Click and select "Save As"

Rock Crawler Bodyshells

Rock Crawler Motors


	M2 Dig 3S Dual Brush ESC

Part Details

Part #	Description
AX90017	XR10 1/10th Scale Electric 4WD Rock Crawler Competition Kit

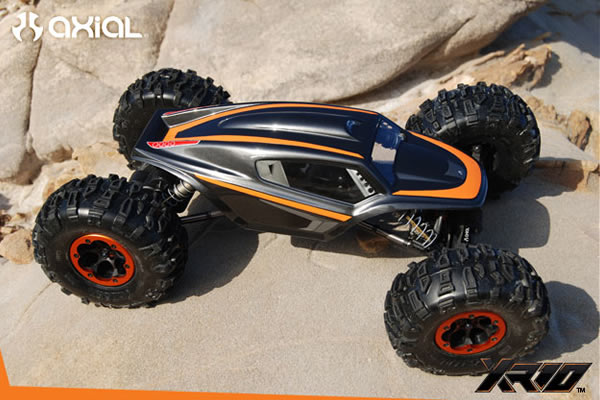

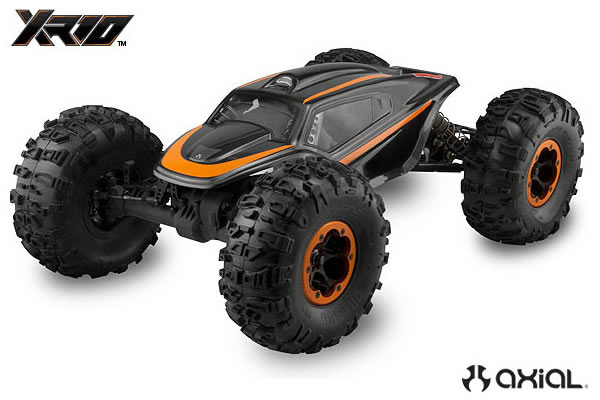

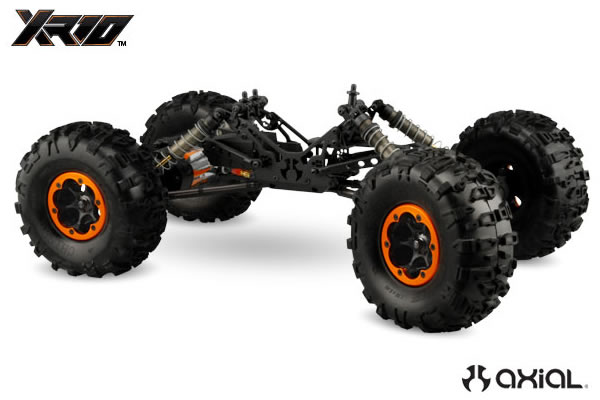

Axial XR10 1/10th Scale Electric 4WD Rock Crawler Competition Kit Image Gallery
